FLV-3RK GP50C
Poly-V Grooving #3 Gage FloLock Inserts with Right Hand Clamping Notch

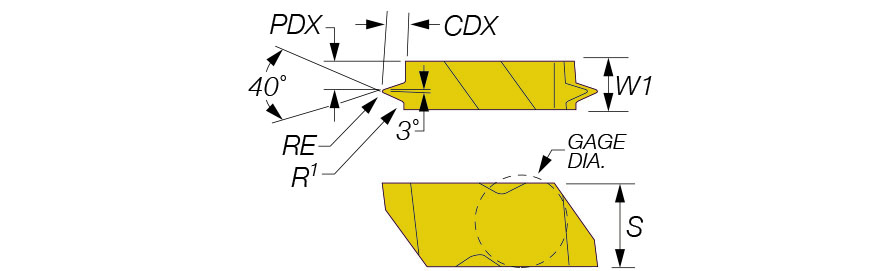

| Corner Radius (RE) | 0.016″ | Applicable Material | | Steel | Stainless Steel | |
| Profile Distance EY (PDY) | 0.1″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.136″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.195″ | Body Material | Carbide |
| Coating | TiN | Insert to Shank Reference | 0.1″ |
| Grade | GP50C | Cutting Edge Length (L) | 0.4″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide | Unit | I |
| Application | | Int Ext Grooving Flo Lock | |
Product Features
Family Description
Poly-V Grooving #3 Gage FloLock Inserts with Right Hand Clamping Notch
COO
USA
FamilyName
FLV-3-RH
BrandName
Tool-Flo
Shipping Info
Weight per item
0.0005
Name
Groove/Turn Indexable Inserts
FamilyName
FLV-3-RH
BrandName
Tool-Flo
