| Cutting Width (CW) | 0.157″ | Application | | Int Ext Deep Grooving Flo Lock | |
| Corner Radius (RE) | 0.007″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 0.437″ | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.195″ | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Grade | GP50C | Cutting Edge Length (L) | 0.855″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide | Unit | I |
Product Features

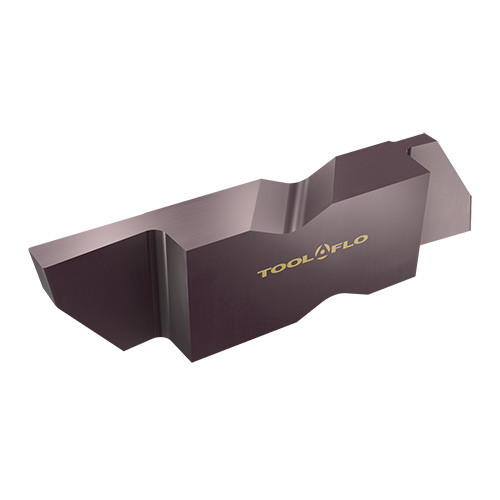

| Family Description | Internal and External Extra Deep Grooving #3 Gage FloLock Inserts with Left Hand Clamping Notch (Double-Ended) | FamilyName | FLGT-3-LH |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0005
Name
Groove/Turn Indexable Inserts
FamilyName
FLGT-3-LH
BrandName
Tool-Flo
