| Cutting Width (CW) | 0.187″ | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.215″ | Application | | Int Ext Grooving On Edge | |
| Insert Thickness (S) | 0.252″ | Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 5/8″ | Cutting Direction (HAND) | Left Hand |
| Fixing Hole Diameter (D1) | 0.253″ | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Grade | GP50 | Unit | I |
| Shape | Triangle |
Product Features

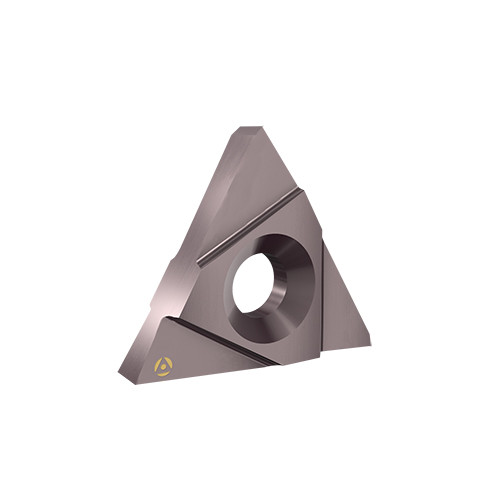

| Family Description | Internal and External 0.625″ IC FloEdge TNMC Style Grooving Inserts with Left Hand Offset Form | FamilyName | TNMC-54-NGL |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0001
Name
Groove/Turn Indexable Inserts
FamilyName
TNMC-54-NGL
BrandName
Tool-Flo
