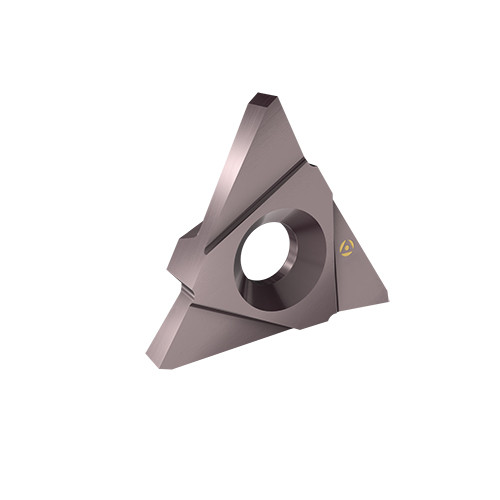

TPMC 43 NGR W.125 GP50C GP50
Internal and External 0.500″ IC FloEdge TPMC Style Grooving Inserts with Positive Rake and Right Hand Offset Form
| Cutting Width (CW) | 1/8″ | Application | | Int Ext Grooving On Edge | |
| Cutting Depth Maximum (CDX) | 0.215″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 0.189″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | PR |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Grade | GP50 | Body Material | Carbide |
| Shape | Triangle | Unit | I |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal and External 0.500″ IC FloEdge TPMC Style Grooving Inserts with Positive Rake and Right Hand Offset Form | FamilyName | TPMC-43-NGR |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0007
Name
Groove/Turn Indexable Inserts
FamilyName
TPMC-43-NGR
BrandName
Tool-Flo
