| Cutting Width (CW) | 1/8″ | Application | | Int Ext Deep Grooving Flo Lock | |
| Corner Radius (RE) | 0.0075″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.55″ | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.255″ | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Grade | GP3R | Cutting Edge Length (L) | 1.136″ |
| Shape | Parrallelogram | Height | 0.453″ |
| Cutting Edge Material | Carbide | Unit | I |
Product Features

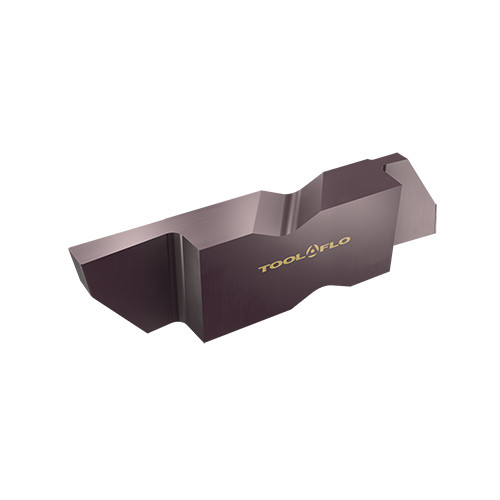

| Family Description | Internal and External Extra Deep Grooving #4 Gage FloLock Inserts with Left Hand Clamping Notch (Double-Ended) | FamilyName | FLGT-4-LH |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0008
Name
Groove/Turn Indexable Inserts
FamilyName
FLGT-4-LH
BrandName
Tool-Flo
