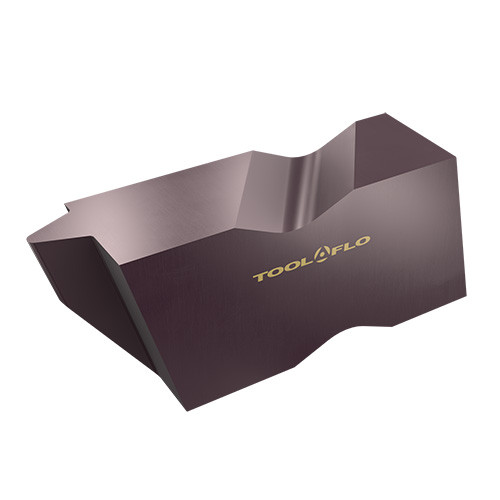

FLV-3LJ GP3R
Poly-V Grooving #3 Gage FloLock Inserts with Left Hand Clamping Notch
Corner Radius (RE) | 0.012″ | Application | | Int Ext Grooving Flo Lock | |
Profile Distance EY (PDY) | 1/8″ | Cutting Direction (HAND) | Left Hand |
Cutting Depth Maximum (CDX) | 0.087″ | Measurement Type | Inch |
Thread Pitch Maximum (TPX) | 0.014 mm | Body Material | Carbide |
Insert Thickness (S) | 0.195″ | Insert to Shank Reference | 1/8″ |
Coating | TiN | Cutting Edge Length (L) | 0.401″ |
Grade | GP3R | Height | 0.344″ |
Shape | Parrallelogram | Unit | I |
Product Features
Family Description
Poly-V Grooving #3 Gage FloLock Inserts with Left Hand Clamping Notch
COO
USA
FamilyName
FLV-3-LH
BrandName
Tool-Flo
Shipping Info
Weight per item
0.0005
Name
Groove/Turn Indexable Inserts
FamilyName
FLV-3-LH
BrandName
Tool-Flo
