FLV-4LL AC50E

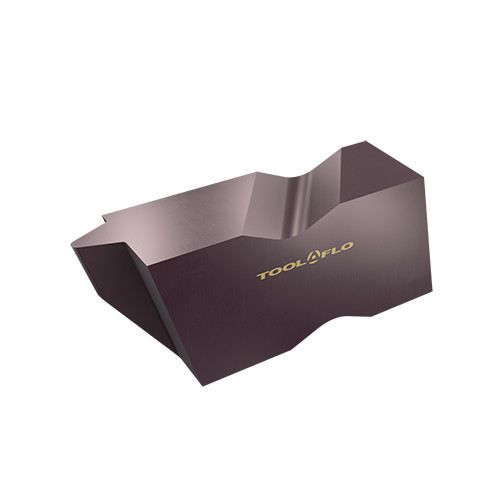

Poly-V Grooving #4 Gage FloLock Inserts with Left Hand Clamping Notch
| Corner Radius (RE) | 0.012″ | Cutting Direction (HAND) | Left Hand |
| Profile Distance EY (PDY) | 0.118″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.201″ | Body Material | Carbide |
| Insert Thickness (S) | 0.255″ | Insert to Shank Reference | 0.118″ |
| Coating | TiAlN | Cutting Edge Length (L) | 0.629″ |
| Grade | AC50E | Height | 0.453″ |
| Shape | Parrallelogram | Unit | I |
| Application | | Int Ext Grooving Flo Lock | |
Product Features
| Family Description | Poly-V Grooving #4 Gage FloLock Inserts with Left Hand Clamping Notch | FamilyName | FLV-4-LH |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0008
Name
Groove/Turn Indexable Inserts
FamilyName
FLV-4-LH
BrandName
Tool-Flo
