| Cutting Width (CW) | 1/8″ | Application | | Int Ext Grooving Flo Lock | |
| Corner Radius (RE) | 0.062″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.29″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.018 mm | Chip Breaker Type | PR |
| Insert Thickness (S) | 0.255″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AC3R | Cutting Edge Length (L) | 0.631″ |
| Shape | Parrallelogram | Height | 0.453″ |
| Cutting Edge Material | Carbide | Unit | I |
Product Features

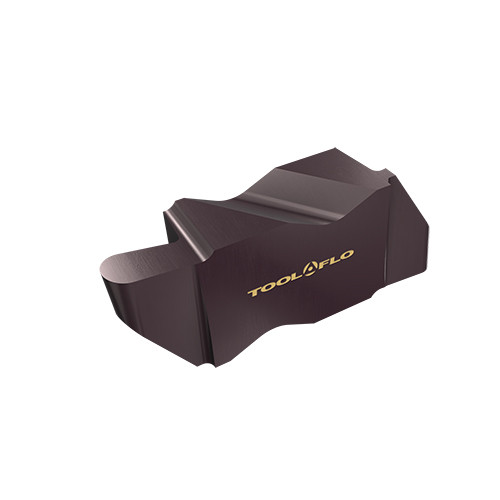

| Family Description | Internal and External Full Nose Radius Grooving #4 Gage FloLock Inserts with 5° Positive Rake and Right Hand Clamping Notch | FamilyName | FLRP-4-RH |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0008
Name
Groove/Turn Indexable Inserts
FamilyName
FLRP-4-RH
BrandName
Tool-Flo
