| Cutting Width (CW) | 0.218″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.015″ | Profile Included Angle (PNA) | 90 Degrees |
| Insert Thickness (S) | 0.144″ | Measurement Type | Inch |
| Insert Length (INSL) | 1-1/8″ | Min. Grooving Feed (fg(min)) | 0 ″/rev |
| Insert Rake Angle (GAN) | 0 Degrees | Body Material | Carbide |
| Coating | TiAlN | Height | 1/4″ |
| Grade | AC3R | Max. Grooving Feed (fg(max)) | 0 ″/rev |
| Cutting Edge Material | Carbide | Unit | I |
| Application | | Int Ext Grooving Vee Bottom | |
Product Features
| Family Description | Internal and External FloVee VDB Style Grooving Inserts | FamilyName | VDB |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0005

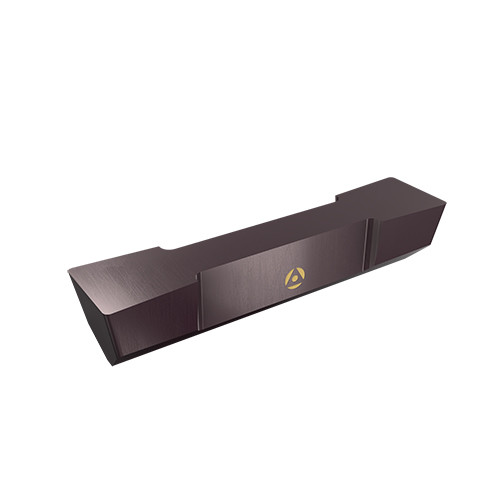

Name
Groove/Turn Indexable Inserts
FamilyName
VDB
BrandName
Tool-Flo
