| Cutting Width (CW) | 0.079″ | Application | | Swiss Machine Parting | |
| Corner Radius (RE) | 0″ | Max. Grooving Feed (fg(max)) | 0.006 ″/rev |
| Insert Thickness (S) | 0.156″ | Min. Grooving Feed (fg(min)) | 0.003 ″/rev |
| Insert Length (INSL) | 0.984″ | Angle | 0 Degrees |
| Cutting Depth Maximum (CDX) | 0.236″ | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Grade | GP3S | Unit | I |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | FloSwiss Left Hand Parting Inserts | FamilyName | TFGL-SWISS |
| COO | Japan | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0004
Name

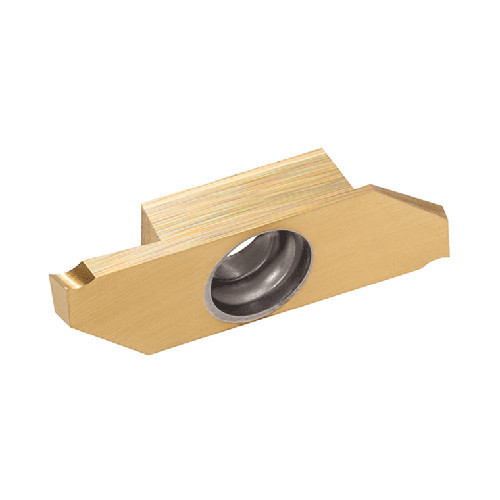

Parting Off Indexable Inserts
FamilyName
TFGL-SWISS
BrandName
Tool-Flo
