MTSRH 32-5-N
Endmills with Coolant Holes for Helical Threading Inserts

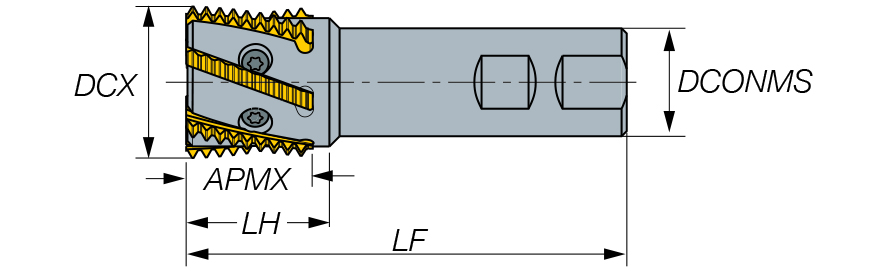

| Cutting Diameter (DC) | 32 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 32 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Overall Length (OAL) | 130 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 60 mm | Unit | M |
| Master Insert Identification (MIID) | MTH 32 E 1.5 ISO |
Product Features
| Family Description | Endmills with Coolant Holes for Helical Threading Inserts | COO | Israel |
Shipping Info
Weight per item
0.0000
