| Minimum Bore Diameter (DMIN) | 2-1/8″ | Application | | Int Threading/Grooving On Edge | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Body Material | Steel |
| Overall Length (OAL) | 14″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.22″ | Functional Width (WF) | 1.092″ |
| Cutting Direction (HAND) | Left Hand | Unit | I |
Product Features

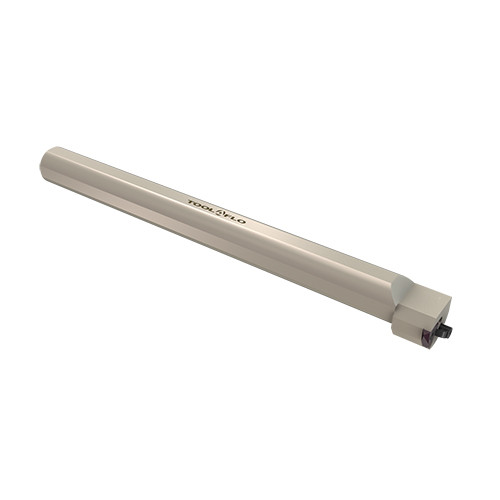

| Family Description | Internal Left Hand Threading and Grooving Bar for FloEdge (TNMA/TPMA/TNMC/TPMC-54) Inserts | FamilyName | SI-MTHOL-5 |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
On-Edge Threading Indexable Holders
FamilyName
SI-MTHOL-5
BrandName
Tool-Flo
