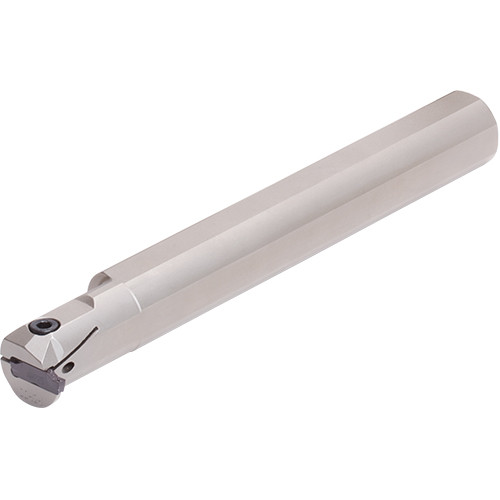

FHIR12-3T06-D16
Right Hand Boring Bars for Internal Grooving & Turning (#3 Gage Inserts)
| Cutting Width (CW) | 0.118″ | Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Cutting Depth Maximum (CDX) | 0.236″ | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 0.661″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1″ | Measurement Type | Inch |
| Functional Width (WF) | 0.609″ | Insert Seat Size Code (SSC) | 3 |
| Functional Length (LF) | 6-1/2″ | Unit | I |
| Head Length (LH) | 1.575″ |
Product Features
| Family Description | Right Hand Boring Bars for Internal Grooving & Turning (#3 Gage Inserts) | FamilyName | FHIR-3 |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.7275
Name
Groove/Turn Indexable Holders
FamilyName
FHIR-3
BrandName
Tool-Flo
