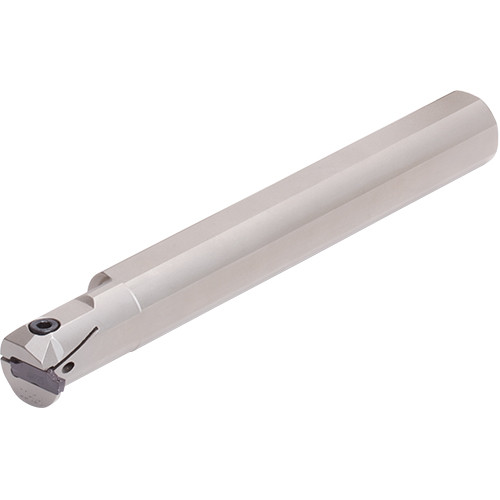

FHIR20-4T10-D25
Right Hand Boring Bars for Internal Grooving & Turning (#4 Gage Inserts)
| Cutting Width (CW) | 0.157″ | Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Cutting Depth Maximum (CDX) | 0.394″ | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 1.102″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.563″ | Measurement Type | Inch |
| Functional Width (WF) | 1.063″ | Insert Seat Size Code (SSC) | 4 |
| Functional Length (LF) | 10″ | Unit | I |
| Head Length (LH) | 2.362″ |
Product Features
| Family Description | Right Hand Boring Bars for Internal Grooving & Turning (#4 Gage Inserts) | FamilyName | FHIR-4 |
| COO | Korea | BrandName | Tool-Flo |
Shipping Info
Weight per item
2.9542
Name
Groove/Turn Indexable Holders
FamilyName
FHIR-4
BrandName
Tool-Flo
