GTB-062

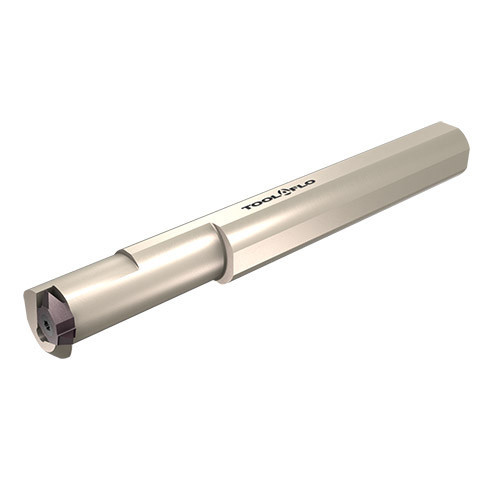

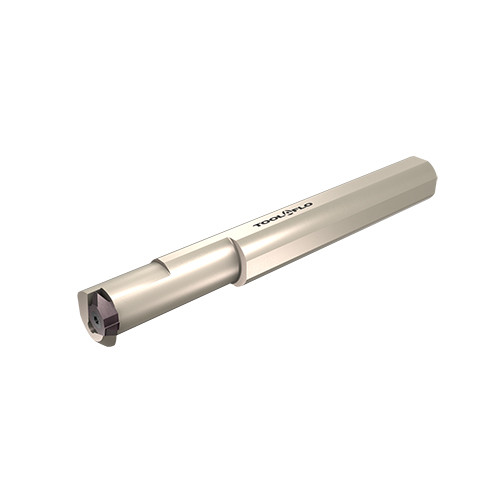

Internal Threading and Grooving On-Edge Holder for TNEB inserts
| Minimum Bore Diameter (DMIN) | 0.862″ | Head Length (LH) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Body Material | Steel |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.07″ | Functional Width (WF) | 0.312″ |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Application | | Int Threading/Grooving On Edge | |
Product Features
| Family Description | Internal Threading and Grooving On-Edge Holder for TNEB inserts | FamilyName | GTB |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
On-Edge Threading Indexable Holders
FamilyName
GTB
BrandName
Tool-Flo
