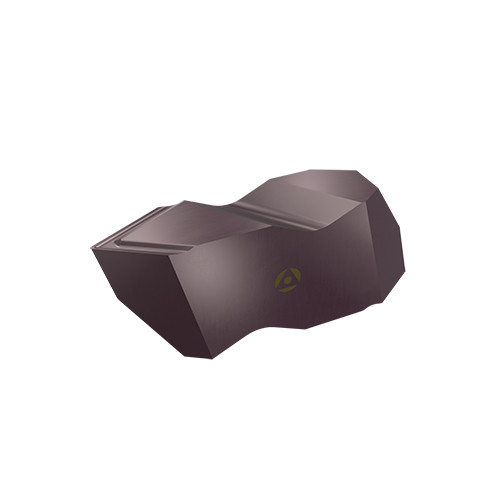

| Application | | Int Ext Threading Flo Lock | | Insert to Shank Reference | 0.098″ |
| Insert Thickness (S) | 0.344″ | Cutting Edge Length (L) | 0.4″ |
| Corner Radius (RE) | 0.0065″ | Insert Size | 3 |
| Body Material | Carbide | Cutting Edge Material | Carbide |
| Pitch TPI External (TPI Ext) | 8-20 | Coating | TiN |
| Pitch TPI Internal (TPI Int) | 8-12 | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | | Thread Form Type (THFT) | 60?° Partial V-Thread Profile |
| Number of Teeth | 1 | Unit | I |
| Grade | GP50C | Insert Width (W1) | 0.195″ |
| Cutting Direction (HAND) | Right Hand | Chip Breaker Type | CB |
| Thread Pitch Maximum (TPX) | 0.344 mm | Shape | Parrallelogram |
