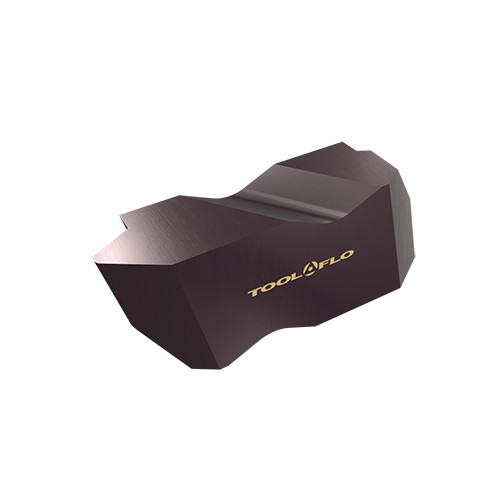

FLTC-3R8E AC50C
External American UN Full Profile (UN, UNC, UNF, UNEF) FloLock Threading Inserts with Right Hand Clamping Notch
| Threads per Inch (TPI) | 8 | Insert to Shank Reference | 0.107″ |
| Application | | Int Ext Threading Flo Lock | | Cutting Edge Length (L) | 0.4″ |
| Insert Thickness (S) | 0.344″ | Insert Size | 3 |
| Corner Radius (RE) | 0.015″ | Coating | TiAlN |
| Body Material | Carbide | Measurement Type | Inch |
| Number of Teeth | 1 | Thread Form Type (THFT) | UN Am. Unified ANSI/ASME B1.1 |
| Grade | AC50C | Unit | I |
| Cutting Direction (HAND) | Right Hand | Insert Width (W1) | 0.195″ |
| Thread Pitch Maximum (TPX) | 0.344 mm | Shape | Parrallelogram |
