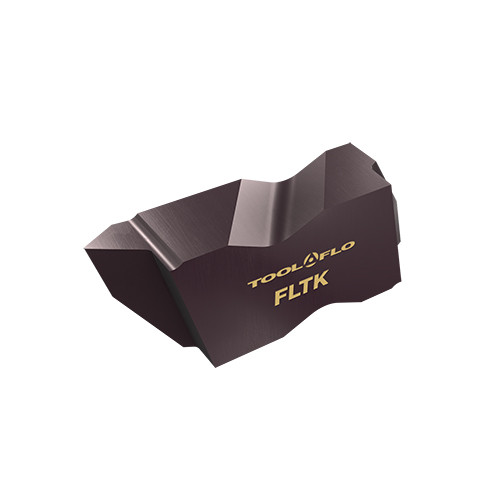

FLTK-4L AC50C
Internal and External Fine Pitch 60° V-Thread Non-Topping Profile FloLock Inserts with 5° Positive Rake and Left Hand Clamping Notch
| Angle | 5 Degrees | Insert to Shank Reference | 0.201″ |
| Application | | Int Ext Threading Flo Lock | | Cutting Edge Length (L) | 0.632″ |
| Insert Thickness (S) | 0.453″ | Insert Size | 4 |
| Corner Radius (RE) | 0.003″ | Coating | TiAlN |
| Body Material | Carbide | Measurement Type | Inch |
| Pitch TPI External (TPI Ext) | 10-44 Threads/" | Thread Form Type (THFT) | 60?° Partial V-Thread Profile |
| Pitch TPI Internal (TPI Int) | 9-24 Threads/" | Unit | I |
| Number of Teeth | 1 | Insert Width (W1) | 0.255″ |
| Grade | AC50C | Chip Breaker Type | PR |
| Cutting Direction (HAND) | Left Hand | Shape | Parrallelogram |
| Thread Pitch Maximum (TPX) | 0.453 mm |
