| Application | | Ext Milling Rigid Lock | | Insert Size | 30M |
| Corner Radius (RE) | 15 mm | Insert Body Diameter (INSBD) | 0 |
| Depth of Cut Maximum (APMX) | 15 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 6 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | ZS26F | Cutting Diameter (DC) | 30 mm |
| Insert Style | TBXR | Unit | M |
Product Features

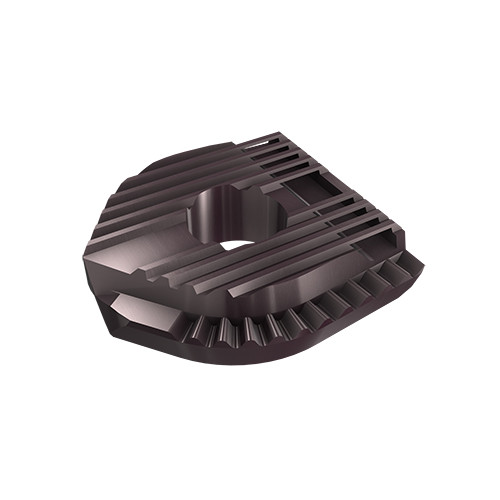

| Family Description | RigidLock Roughing Ball Nose Style Milling Inserts | FamilyName | TBXR |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0006
Name
Milling Indexable Inserts
FamilyName
TBXR
BrandName
Tool-Flo
