| Threads per Inch (TPI) | 6 | Application | | Int Ext Threading On Edge | |
| Corner Radius (RE) | 0″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 0.189″ | Threads per Inch Maximum (TPIX) | 0 |
| Cutting Width (CW) | 0.069″ | Threads per Inch Minimum (TPIN) | 0 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Grade | AC50C | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | STUB ACME Am. Nat. B1.5 |
| Cutting Edge Material | Carbide | Unit | I |
| Cutting Direction (HAND) | Neutral |
Product Features

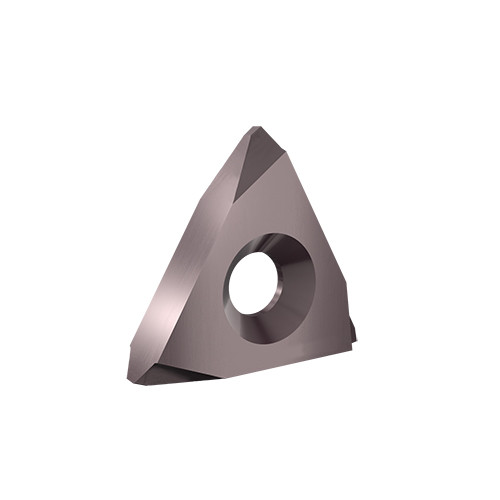

| Family Description | External FloEdge TNMC Style Threading Inserts with STUB ACME Partial Profile with Modified Root Width | FamilyName | TNMC-GM-STACME-E |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0007
Name
On-Edge Threading Indexable Inserts
FamilyName
TNMC-GM-STACME-E
BrandName
Tool-Flo
