| Threads per Inch (TPI) | 10 | Application | | Int Ext Threading On Edge | |
| Corner Radius (RE) | 0.014″ | Pitch TPI Internal (TPI Int) | 10 |
| Insert Thickness (S) | 0.189″ | Threads per Inch Maximum (TPIX) | 0 |
| Cutting Width (CW) | 0″ | Threads per Inch Minimum (TPIN) | 0 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Grade | AC50C | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | API ROUND Am. Petr. Round |
| Cutting Direction (HAND) | Right Hand | Unit | I |
Product Features

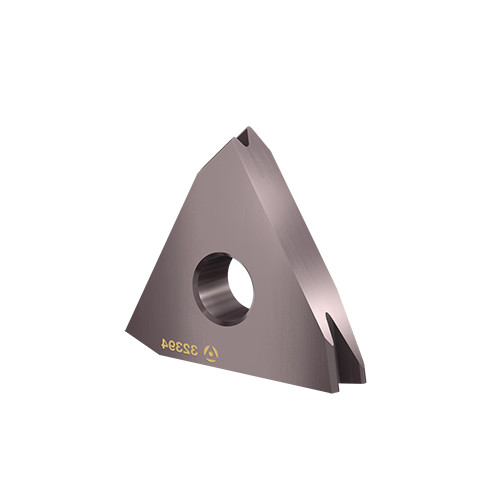

| Family Description | Internal FloEdge TNMA Style Threading Inserts with API RoundProfile | FamilyName | TNMA-API-RD-I |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0007
Name
On-Edge Threading Indexable Inserts
FamilyName
TNMA-API-RD-I
BrandName
Tool-Flo
