| Threads per Inch (TPI) | 5 | Application | | Int Ext Threading On Edge | |
| Corner Radius (RE) | 0″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 0.252″ | Pitch TPI Internal (TPI Int) | 5 |
| Cutting Width (CW) | 0″ | Threads per Inch Maximum (TPIX) | 0 |
| Inscribed Circle Diameter (IC) | 5/8″ | Threads per Inch Minimum (TPIN) | 0 |
| Grade | AC50D | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | API BUTTRESS Am. Petr. B1.9 |
| Cutting Direction (HAND) | Right Hand | Unit | I |
Product Features

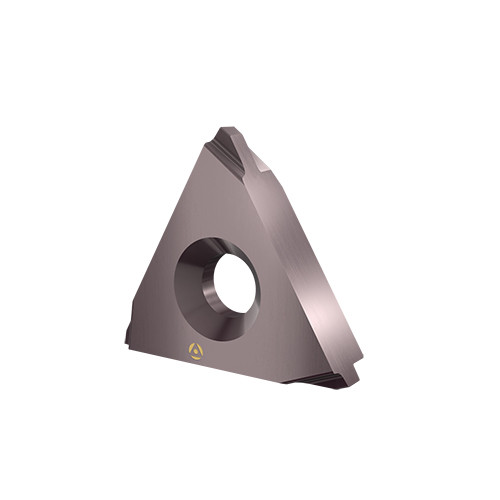

| Family Description | Internal FloEdge TNMC Style Threading Inserts with API Buttress Profile | FamilyName | TNMC-APIBUT-I |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0012
Name
On-Edge Threading Indexable Inserts
FamilyName
TNMC-APIBUT-I
BrandName
Tool-Flo
