| Threads per Inch (TPI) | 0 | Application | | Int Ext Threading On Edge | |
| Corner Radius (RE) | 0.006″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 0.189″ | Threads per Inch Maximum (TPIX) | 24 |
| Cutting Width (CW) | 0″ | Threads per Inch Minimum (TPIN) | 5 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Grade | AC50C | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | 55° Partial V-Thread Profile |
| Cutting Edge Material | Carbide | Unit | I |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Internal and External FloEdge TNMC Style Threading Inserts with 55° Partial Profile | FamilyName | TNMC-NV-55 |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0007
Name

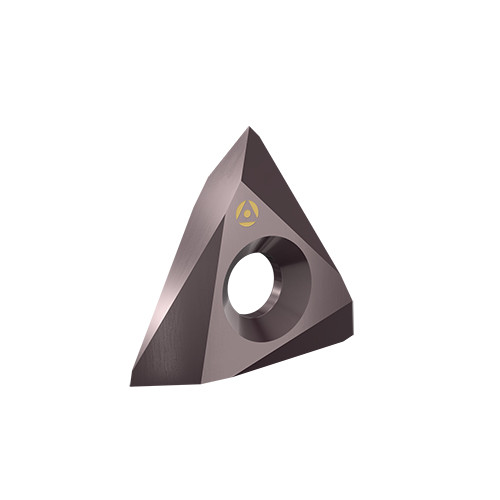

On-Edge Threading Indexable Inserts
FamilyName
TNMC-NV-55
BrandName
Tool-Flo
