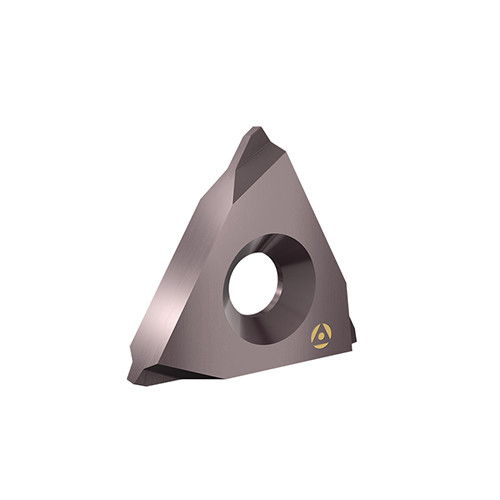

TNMC 54 NT 3.5P AC50E
Internal and External FloEdge TNMC Style Threading Inserts with ACME Partial Profile
| Threads per Inch (TPI) | 3.5 | Coating | TiAlN |
| Corner Radius (RE) | 0.1007″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.252″ | Application | | Int Ext Threading On Edge | |
| Cutting Width (CW) | 0.101″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 5/8″ | Body Material | Carbide |
| Grade | AC50E | Unit | I |
Product Features
| Family Description | Internal and External FloEdge TNMC Style Threading Inserts with ACME Partial Profile | FamilyName | TNMC-ACME |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0012
Name
On-Edge Threading Indexable Inserts
FamilyName
TNMC-ACME
BrandName
Tool-Flo
