| Threads per Inch (TPI) | 3.5 | Application | | Int Ext Threading On Edge | Int Threading Laydown | |
| Corner Radius (RE) | 0.03″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 0.312″ | Threads per Inch Maximum (TPIX) | 0 |
| Cutting Width (CW) | 0″ | Threads per Inch Minimum (TPIN) | 0 |
| Inscribed Circle Diameter (IC) | 5/8″ | Measurement Type | Inch |
| Grade | AC50F | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | API Hughes H90 |
| Cutting Edge Material | Carbide | Unit | I |
| Cutting Direction (HAND) | Right Hand |
Product Features

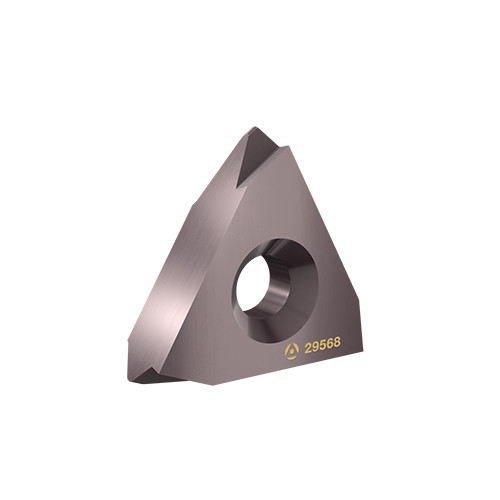

| Family Description | External FloEdge TNMC Style Threading Inserts with Hughes Profile | FamilyName | TNMC-H90-E |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0012
Name
On-Edge Threading Indexable Inserts
FamilyName
TNMC-H90-E
BrandName
Tool-Flo
