| Threads per Inch (TPI) | 5 | Application | | Int Ext Threading On Edge | |
| Corner Radius (RE) | 0.0793″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.189″ | Threads per Inch Maximum (TPIX) | 0 |
| Cutting Width (CW) | 0.079″ | Threads per Inch Minimum (TPIN) | 0 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Grade | AC3R | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | STUB ACME Am. Nat. B1.5 |
| Cutting Edge Material | Carbide | Unit | I |
| Cutting Direction (HAND) | Neutral | Chip Breaker Type | PR |
| Angle | Degrees |
Product Features
| Family Description | Internal and External FloEdge TPMA Style Threading Inserts with Positive Rake and STUB ACME Partial Profile | FamilyName | TPMA STUB ACME |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0007
Name

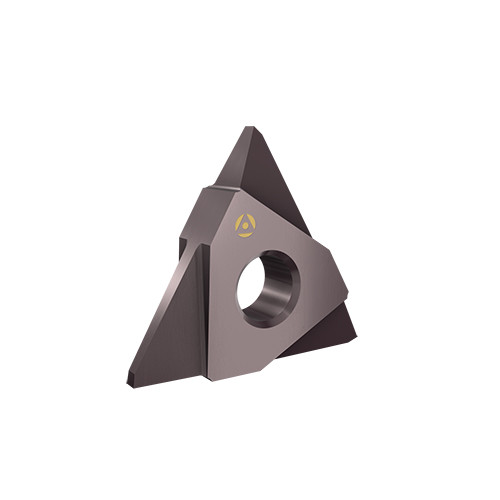

On-Edge Threading Indexable Inserts
FamilyName
TPMA STUB ACME
BrandName
Tool-Flo
