| Corner Radius (RE) | 0.004″ | Threads per Inch Maximum (TPIX) | 32 |
| Insert Thickness (S) | 1/8″ | Threads per Inch Minimum (TPIN) | 7 |
| Inscribed Circle Diameter (IC) | 0.312″ | Measurement Type | Inch |
| Grade | AC5C | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | 60° Partial V-Thread Profile |
| Cutting Direction (HAND) | Left Hand | Unit | I |
| Application | | Int Threadmilling TC Series | |
Product Features
| Family Description | Internal TNEB Style FloEdge Inserts with 60° Partial Profilefor General Industries | FamilyName | TNEB-NV-60 |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0003
Name

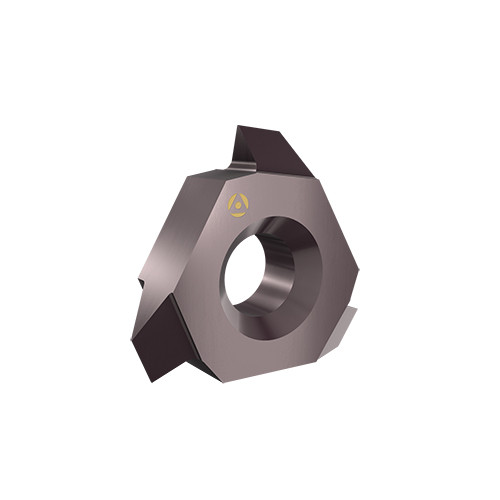

On-Edge Threading Indexable Inserts
FamilyName
TNEB-NV-60
BrandName
Tool-Flo
