| Threads per Inch (TPI) | 0 | Application | | Int Ext Threading On Edge | |
| Corner Radius (RE) | 0.01″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 0.252″ | Threads per Inch Maximum (TPIX) | 6 |
| Cutting Width (CW) | 0″ | Threads per Inch Minimum (TPIN) | 4 |
| Inscribed Circle Diameter (IC) | 5/8″ | Measurement Type | Inch |
| Grade | AC50C | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | ASB Buttress Am. St. 7? Lead |
| Cutting Edge Material | Carbide | Unit | I |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Internal and External FloEdge TNMA Style Threading Inserts with American Standard Buttress Profile (RI7/RE45) | FamilyName | TNMA-RI7 |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0012
Name

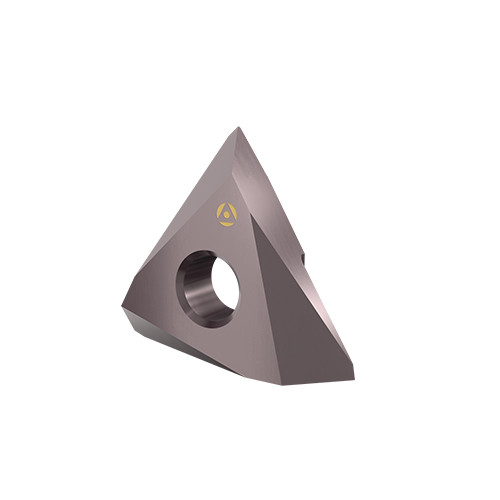

On-Edge Threading Indexable Inserts
FamilyName
TNMA-RI7
BrandName
Tool-Flo
