| Cutting Width (CW) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.505″ | Application | | Int Ext Face Grooving Flo Lock | |
| Corner Radius (RE) | 0.0075″ | Chip Breaker Type | CB |
| Cutting Depth Maximum (CDX) | 0.27″ | Depth of Cut Maximum (APMX) | 0.27″ |
| Insert Thickness Total (S1) | 0.344″ | Measurement Type | Inch |
| Shape | Parrallelogram | Coating | TiN |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | | Insert Thickness (S) | 0.195″ |
| Grade | GP50C | Unit | I |
Product Features

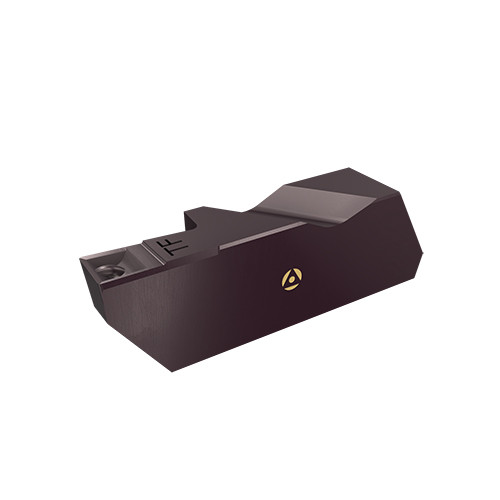

| Family Description | Internal Face Deep Grooving #3 Gage FloLock Inserts with Chip Control and Right Hand Clamping Notch | FamilyName | FLFD-I-3-RH-CB |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0005
Name
Face Groove/Turn Indexable Inserts
FamilyName
FLFD-I-3-RH-CB
BrandName
Tool-Flo
