FLFT-3125L GP3R
External Extra Deep Face Grooving #3 Gage FloLock Inserts with Left Hand Clamping Notch (Double-Ended)

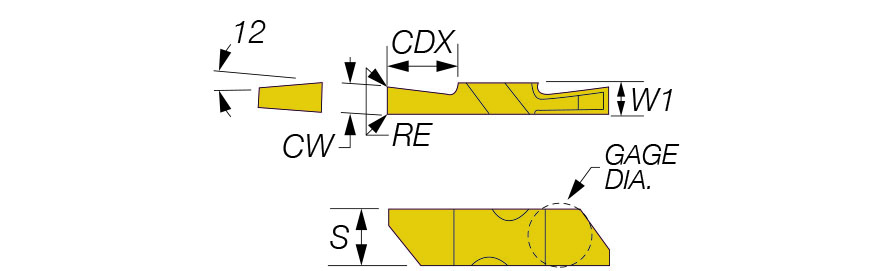

| Cutting Width (CW) | 1/8″ | Application | | Int Ext Face Grooving Flo Lock | |
| Insert Length (INSL) | 0.855″ | Depth of Cut Maximum (APMX) | 3/8″ |
| Corner Radius (RE) | 0.0075″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 3/8″ | Coating | TiN |
| Insert Thickness Total (S1) | 0.344″ | Body Material | Carbide |
| Shape | Parrallelogram | Insert Thickness (S) | 0.195″ |
| Grade | GP3R | Unit | I |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | External Extra Deep Face Grooving #3 Gage FloLock Inserts with Left Hand Clamping Notch (Double-Ended) | FamilyName | FLFT-3-LH |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0005
Name
Face Groove/Turn Indexable Inserts
FamilyName
FLFT-3-LH
BrandName
Tool-Flo
