| Cutting Width (CW) | 0.189″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.761″ | Application | | Int Ext Face Grooving Flo Lock | |
| Corner Radius (RE) | 0.0225″ | Depth of Cut Maximum (APMX) | 0.39″ |
| Cutting Depth Maximum (CDX) | 0.39″ | Measurement Type | Inch |
| Insert Thickness Total (S1) | 0.453″ | Coating | TiAlN |
| Shape | Parrallelogram | Body Material | Carbide |
| Cutting Edge Material | Carbide | Insert Thickness (S) | 0.255″ |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Grade | AC3R |
Product Features

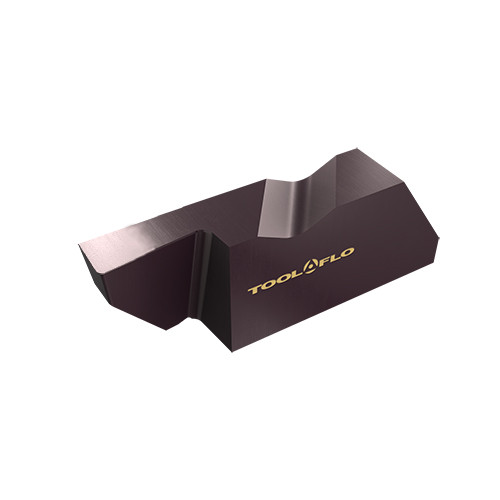

| Family Description | External Face Deep Grooving #4 Gage FloLock Inserts with Left Hand Clamping Notch | FamilyName | FLFD-4-LH |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0008
Name
Face Groove/Turn Indexable Inserts
FamilyName
FLFD-4-LH
BrandName
Tool-Flo
