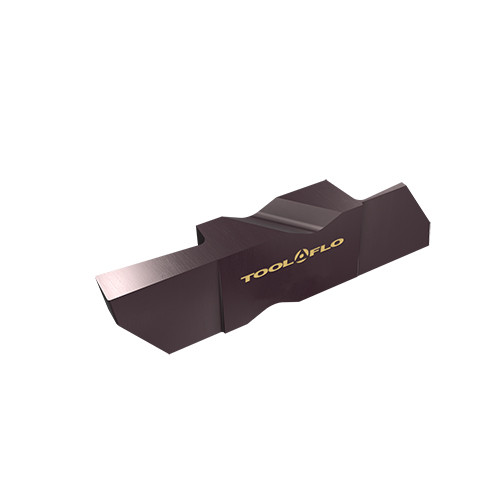

FLFT-4250R GP3A
External Extra Deep Face Grooving #4 Gage FloLock Inserts with Right Hand Clamping Notch (Double-Ended)
| Cutting Width (CW) | 1/4″ | Application | | Int Ext Face Grooving Flo Lock | |
| Insert Length (INSL) | 1.136″ | Depth of Cut Maximum (APMX) | 0.55″ |
| Corner Radius (RE) | 0.0225″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.55″ | Coating | TiN |
| Insert Thickness Total (S1) | 0.453″ | Body Material | Carbide |
| Shape | Parrallelogram | Insert Thickness (S) | 0.255″ |
| Grade | GP3A | Unit | I |
| Cutting Direction (HAND) | Right Hand |
Product Features
Family Description
External Extra Deep Face Grooving #4 Gage FloLock Inserts with Right Hand Clamping Notch (Double-Ended)
COO
USA
FamilyName
FLFT-4-RH
BrandName
Tool-Flo
Shipping Info
Weight per item
0.0008
Name
Face Groove/Turn Indexable Inserts
FamilyName
FLFT-4-RH
BrandName
Tool-Flo
