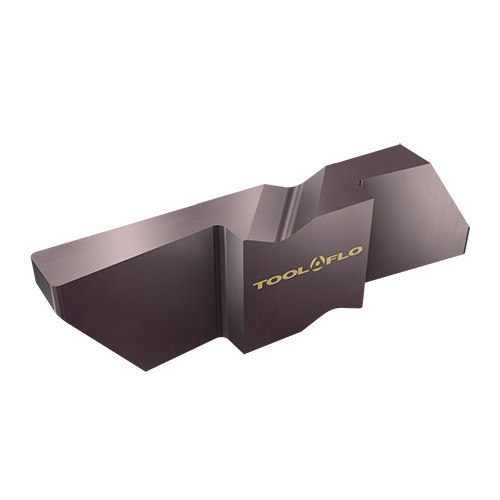

FLFT-4250L AC3A

External Extra Deep Face Grooving #4 Gage FloLock Inserts with Left Hand Clamping Notch (Double-Ended)

Item # 6349250LAC3A

Brand: Tool-Flo

Mfr#: 2494343

Cutting Width (CW)	1/4″	Cutting Direction (HAND)	Left Hand
Insert Length (INSL)	1.136″	Application	\| Int Ext Face Grooving Flo Lock \|
Corner Radius (RE)	0.0225″	Depth of Cut Maximum (APMX)	0.55″
Cutting Depth Maximum (CDX)	0.55″	Measurement Type	Inch
Insert Thickness Total (S1)	0.453″	Coating	TiAlN
Shape	Parrallelogram	Body Material	Carbide
Cutting Edge Material	Carbide	Insert Thickness (S)	0.255″
Applicable Material	\| Steel \| Stainless Steel \| Hard Materials \| Super-Alloys / Titanium \|	Unit	I
Grade	AC3A

Product Features

Family Description

External Extra Deep Face Grooving #4 Gage FloLock Inserts with Left Hand Clamping Notch (Double-Ended)

COO

USA

FamilyName

FLFT-4-LH

BrandName

Tool-Flo

Weight per item

0.0008

Name

Face Groove/Turn Indexable Inserts

FamilyName

FLFT-4-LH

BrandName

Tool-Flo
