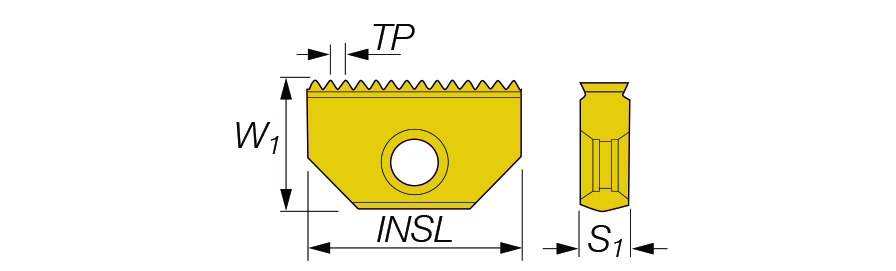

| Thread Pitch (TP) | 2.209 mm | Grade | AC22 |
| Threads per Inch (TPI) | 11.5 | Shape | Rectangle |
| Insert Length (INSL) | 0.827″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.496″ | Coating | TiAlN |
| Insert Thickness Total (S1) | 0.187″ | Measurement Type | Inch |
| Cutting Position | External | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | NPSF |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features
| Family Description | External and Internal NPSF Full Profile Thread Milling Inserts | COO | Israel |
Shipping Info
Weight per item
0.0375
