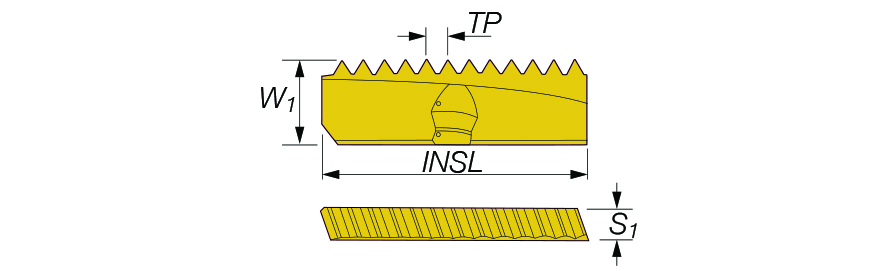

| Thread Pitch (TP) | 2.309 mm | Shape | 90° Rectangular |
| Threads per Inch (TPI) | 11 | Thread Designation Outside (THOD) | 1″ |
| Insert Length (INSL) | 1.26″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.354″ | Coating | TiAlN |
| Insert Thickness Total (S1) | 0.14″ | Measurement Type | Inch |
| Thread Designation Inside (THID) | 1-1/8″ | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | WH55 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Grade | AC22 |
Product Features

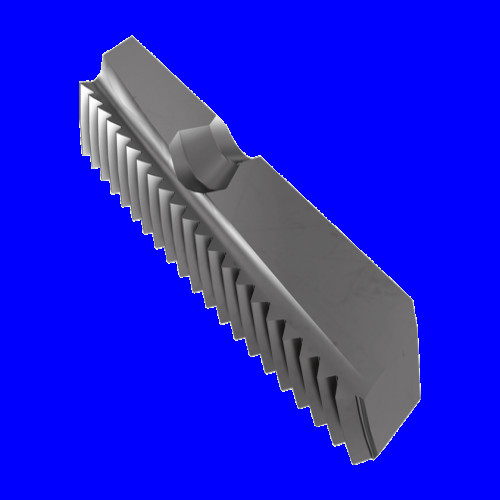

| Family Description | External & Internal Whitworth (BSW, BSF, BSP) Helical Thread Milling Inserts for Fittings and Pipe Couplings | COO | Israel |
Shipping Info
Weight per item
0.0004
