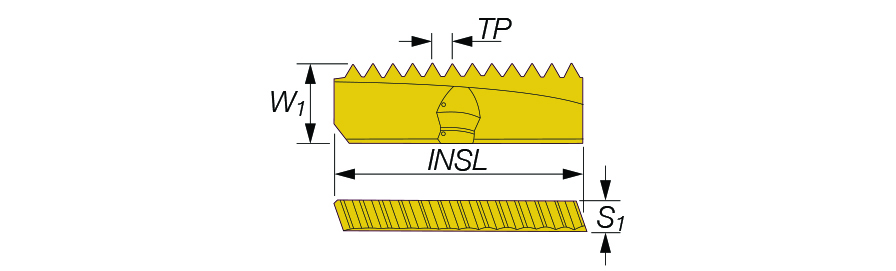

| Thread Pitch (TP) | 5.5 mm | Grade | AC22 |
| Insert Length (INSL) | 1.457″ | Shape | Rectangle |
| Insert Width (W1) | 0.469″ | Cutting Edge Material | Carbide |
| Insert Thickness Total (S1) | 0.197″ | Coating | TiAlN |
| Thread Designation Inside (THID) | M56 | Measurement Type | Inch |
| Cutting Position | Internal | Body Material | Carbide |
| Application | | Internal Thread Milling | Threading Inserts | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features
| Family Description | Helical Thread Milling Inserts for ISO Metric Internal Threads | COO | Israel |
Shipping Info
Weight per item
0.0154
