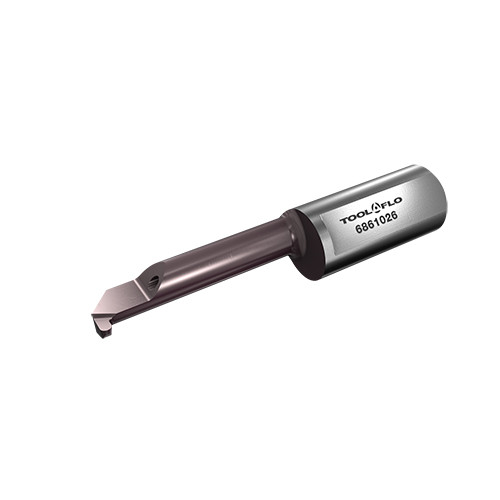

TFRR07290050-D068 AC22
Solid boring bars for Boring & profiling, full radius type
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Corner Radius (RE) | 0.0197″ |
| Minimum Bore Diameter (DMIN) | 0.268″ | Cutting Depth Maximum (CDX) | 0.098″ |
| Functional Length (LF) | 1.772″ | Functional Width (WF) | 0.11″ |
| Head Length (LH) | 1.142″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AC22 | Overall Length (OAL) | 1.772″ |
| Application | | Internal Profiling | | Cutting Width (CW) | 0.039″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Front End Width (a) | 0.248″ |
Product Features
| Family Description | Solid boring bars for Boring & profiling, full radius type | FamilyName | TFR |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0023
Name
Solid Boring Bars
FamilyName
TFR
BrandName
Tool-Flo
