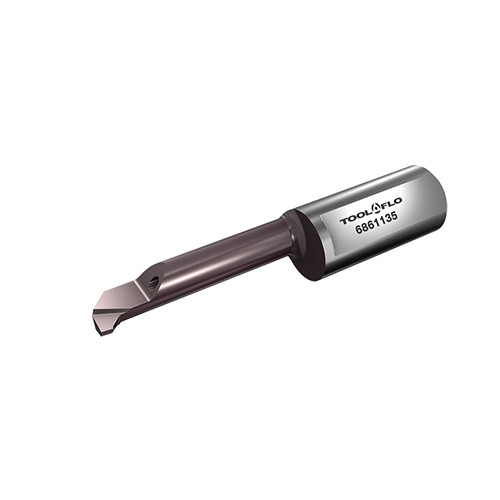

TFUR07140010-D050 AC22
Solid boring bars for back boring & chamfering
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Front End Width (a) | 0.173″ |
| Minimum Bore Diameter (DMIN) | 0.197″ | Cutting Depth Maximum (CDX) | 0.039″ |
| Functional Length (LF) | 1.181″ | Functional Width (WF) | 0.035″ |
| Head Length (LH) | 0.551″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AC22 | Overall Length (OAL) | 1.181″ |
| Application | | Internal Profiling | | Cutting Width (CW) | 0.039″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features
| Family Description | Solid boring bars for back boring & chamfering | FamilyName | TFU |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0017
Name
Solid Boring Bars
FamilyName
TFU
BrandName
Tool-Flo
