Thread Pitch (TP) | 0.039 mm | Overall Length (OAL) | 1.181″ |
Overhang Minimum (OHN) | 0.02″ | Minimum Bore Diameter (DMIN) | 0.189″ |
Functional Width (WF) | 0.035″ | Central Flat (CF) | 0.005″ |
Cutting Direction (HAND) | Right Hand | Grade | AC22 |
Cutting Edge Material | Carbide | Threads per Inch (TPI) | 25.4 |
Connection Diameter Machine Side (DCONMS) | 0.276″ | Body Material | Carbide |
Application | | Internal Thread Turning | | Head Length (LH) | 0.551″ |
Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Front End Width (a) | 0.17″ |
Coating | TiAlN | Unit | I |
Measurement Type | Inch |
Product Features
Family Description | MicroCut Right Hand Bars with Internal Coolant for 60° Threading | FamilyName | TFI R |
COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0001
Name

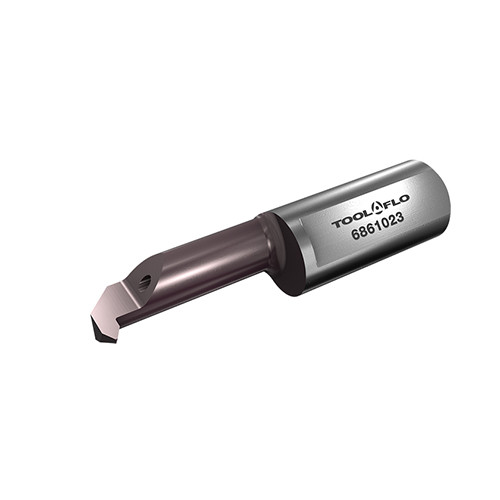

Solid Thread Turning Tools
FamilyName
TFI R
BrandName
Tool-Flo
