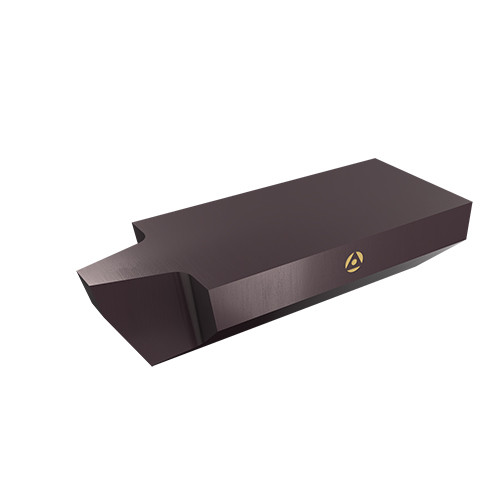

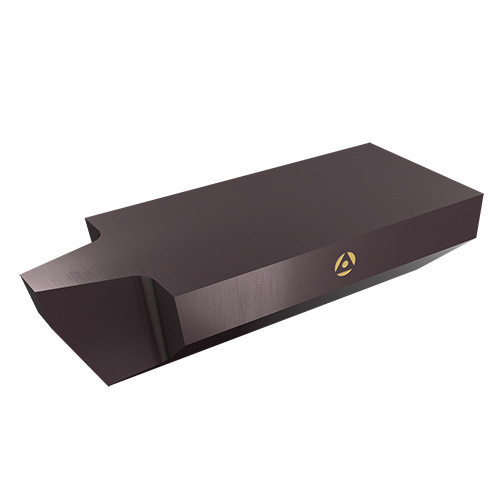

| Application | | Int Threading/Grooving Vee Bot | | Cutting Width (CW) | 0″ |
| Coating | TiAlN | Insert Length (INSL) | 5/8″ |
| Cutting Edge Material | Carbide | Insert Thickness (S) | 1/4″ |
| Measurement Type | Inch | Thread Form Type (THFT) | 60° Partial V-Thread Profile |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Threads per Inch (TPI) | 0 |
| Body Material | Carbide | Threads per Inch Maximum (TPIX) | 20 |
| Grade | AC22C | Threads per Inch Minimum (TPIN) | 5 |
| Corner Radius (RE) | 0.0045″ | Unit | I |
| Cutting Direction (HAND) | Neutral | Insert Width (W1) | 1/4″ |
