| Connection Diameter Machine Side (DCONMS) | 2″ | Master Insert Identification (MIID) | 27 UIRL.. |
| Minimum Bore Diameter (DMIN) | 2.3″ | Body Material | Steel |
| Shank Size (SS) | 2 | Tool Type | BORING BAR |
| Coolant Supply Property (CSP) | External | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Reduced Body Diameter Length (LDRED) | 0″ |
| Application | | Int. Grooving | Internal Thread Turning | Internal Threading lay down | | Body Diameter Reduced (BDRED) | 0″ |
| Functional Width (WF) | 1.37″ | Unit | I |
Product Features
| Family Description | Internal Left Hand Threading Bars for U-Style Laydown Inserts | FamilyName | SIL-U |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name

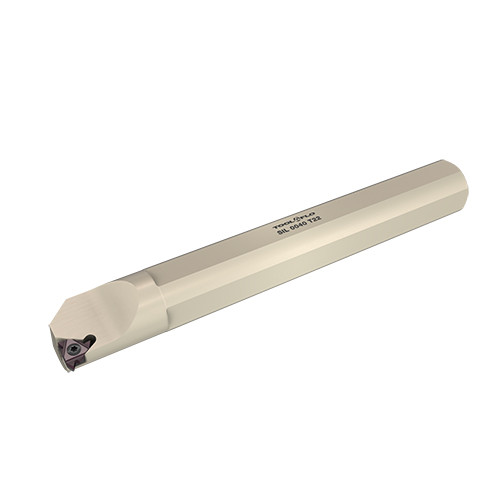

Laydown Threading Indexable Holders
FamilyName
SIL-U
BrandName
Tool-Flo
