| Connection Diameter Machine Side (DCONMS) | 20 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 24 mm | Tool Type | BORING BAR |
| Shank Size (SS) | 20 | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Reduced Body Diameter Length (LDRED) | 0 mm |
| Cutting Direction (HAND) | Right Hand | Body Diameter Reduced (BDRED) | 20 mm |
| Application | | Int. Grooving | Internal Thread Turning | Internal Threading lay down | | Unit | M |
| Functional Width (WF) | 13.7 mm | Functional Length (LF) | 170 mm |
| Master Insert Identification (MIID) | 16 IR/L.. |
Product Features
| Family Description | Internal Right Hand Threading Bars with Coolant for IR Laydown Inserts | FamilyName | SIR-C |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name

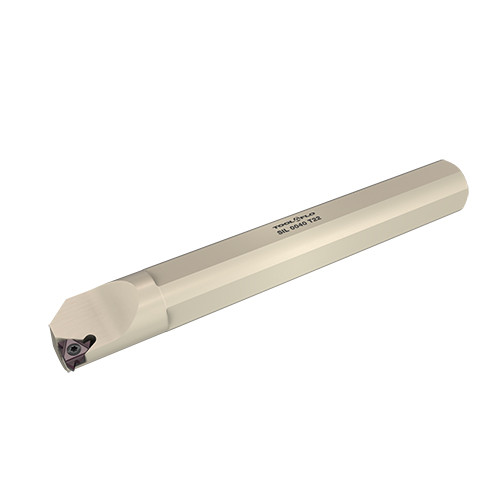

Laydown Threading Indexable Holders
FamilyName
SIR-C
BrandName
Tool-Flo
