| Inscribed Circle Diameter (IC) | 3/8″ | Threads per Inch Minimum (TPIN) | 8 |
| Insert Length (INSL) | 0.649″ | Threads per Inch Maximum (TPIX) | 48 |
| Corner Radius (RE) | 0.002″ | Thread Pitch Minimum (TPN) | 0.5 mm |
| Grade | ACX3A | Thread Pitch Maximum (TPX) | 3 mm |
| Coating | TiAlN, TiN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
| Insert Style | Laydown (LT) | Unit | I |
| Cutting Direction (HAND) | Left Hand | Profile Distance EY (PDY) | 0.0472″ |
Product Features
| Family Description | Internal Left Hand Laydown Threading Inserts with a 60° Partial Profile for General Industries | FamilyName | IL-60 |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name

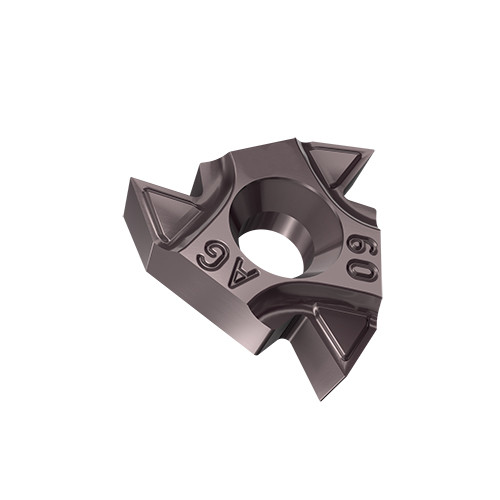

Laydown Threading Indexable Inserts
FamilyName
IL-60
BrandName
Tool-Flo
