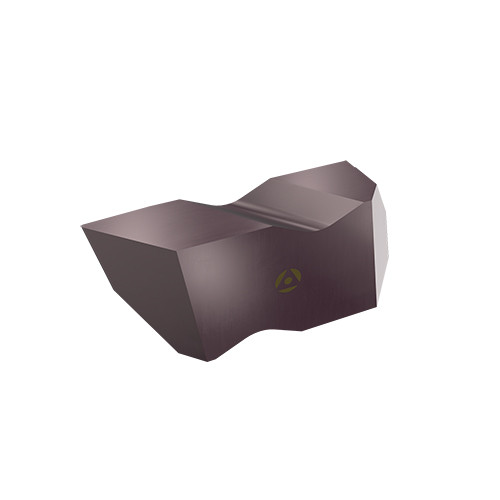

| Application | | Int Ext Threading Flo Lock | | Insert Size | 3 |
| Insert Thickness (S) | 0.344″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0065″ | Coating | TiAlN |
| Body Material | Carbide | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | | Threads per Inch Maximum (TPIX) | 16 |
| Number of Teeth | 1 | Threads per Inch Minimum (TPIN) | 8 |
| Grade | AC50C | Thread Form Type (THFT) | ASB Buttress Am. St. 45?° Lead |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Thread Pitch Maximum (TPX) | 0.344 mm | Insert Width (W1) | 0.195″ |
| Insert to Shank Reference | 0.012″ | Shape | Parrallelogram |
| Cutting Edge Length (L) | 0.388″ |
