| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Left Hand |
| Thread Pitch (TP) | 1.5 mm | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0087″ | Measurement Type | Inch |
| Grade | ACX3A | Body Material | Carbide |
| Coating | TiAlN, TiN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Profile Distance EY (PDY) | 0.0394″ |
Product Features
| Family Description | External Left Hand ISO Metric (DIN13 12-1986 class: 6g) Laydown Threading Inserts for General Industries | FamilyName | EL-ISO |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name

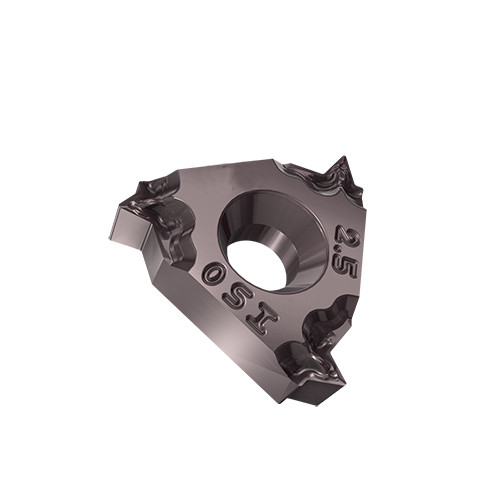

Laydown Threading Indexable Inserts
FamilyName
EL-ISO
BrandName
Tool-Flo
