| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 18 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.002″ | Measurement Type | Inch |
| Grade | ACX3A | Body Material | Carbide |
| Coating | TiAlN, TiN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | NPT60 |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Profile Distance EY (PDY) | 0.0315″ |
Product Features

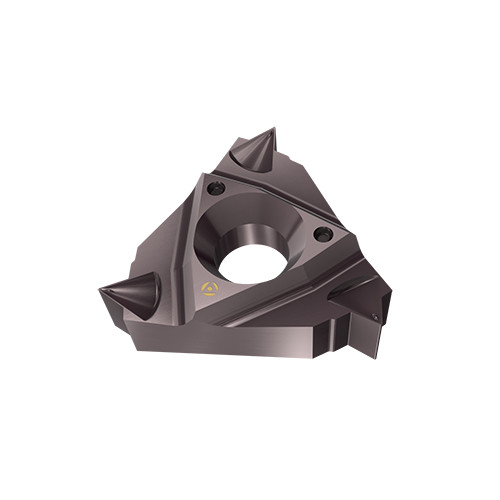

| Family Description | External Right Hand NPT (National Pipe Threads) Full ProfileLaydown Threading Inserts for Steam, Gas and Water Pipes with Chip Control | FamilyName | ER-NPT-CB |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
ER-NPT-CB
BrandName
Tool-Flo
