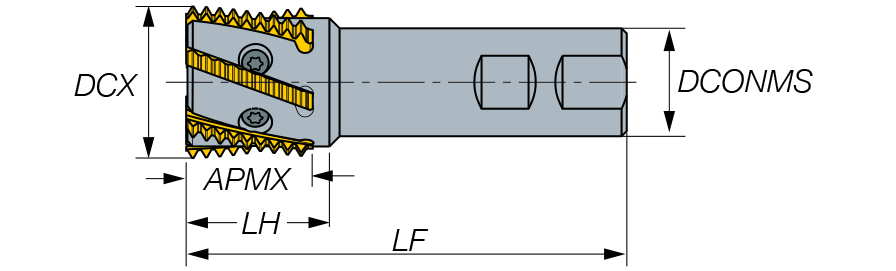

| Cutting Diameter (DC) | 1.77″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 1.457″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 5″ | Application | | External Thread Milling | Internal Thread Milling | |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Hub Diameter (DHUB) | 0″ | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 1.61″ | Thread Type (TTP_DF2) | INT |
| Master Insert Identification (MIID) | MTH 45 E 1.5 ISO | Unit | I |
Product Features
| Family Description | Endmills with Coolant Holes for Helical Threading Inserts | COO | Israel |
Shipping Info
Weight per item
0.0000
