| Inscribed Circle Diameter (IC) | 1/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.433″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 14 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0091″ | Body Material | Carbide |
| Grade | AC22A | Thread Form Type (THFT) | WH55 |
| Coating | TiAlN | Unit | I |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.0354″ |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | |
Product Features
| Family Description | Internal Right Hand Whitworth (BSW, BSF, BSP) B.S.84-1956 DIN 259 Medium Class Full Profile Laydown Threading Inserts with Chip Control | FamilyName | IR-W-CB |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0001
Name

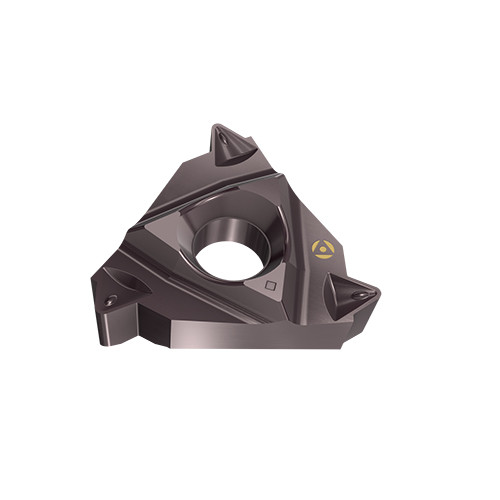

Laydown Threading Indexable Inserts
FamilyName
IR-W-CB
BrandName
Tool-Flo
