| Inscribed Circle Diameter (IC) | 1/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.433″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 1.5 mm | Measurement Type | Inch |
| Corner Radius (RE) | 0.0031″ | Body Material | Carbide |
| Grade | AC22A | Thread Form Type (THFT) | MJ60 |
| Coating | TiAlN | Unit | I |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.0315″ |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | |
Product Features
| Family Description | Internal Right Hand MJ ISO 5855 Metric Full Profile Laydown Threading Inserts for the Aviation and Aerospace Industries | FamilyName | IR-MJ-CB |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name

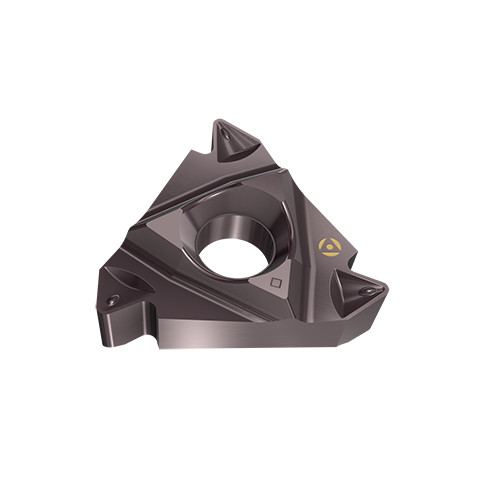

Laydown Threading Indexable Inserts
FamilyName
IR-MJ-CB
BrandName
Tool-Flo
