| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Left Hand |
| Threads per Inch (TPI) | 8 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0169″ | Body Material | Carbide |
| Grade | AC22A | Thread Form Type (THFT) | APR60 |
| Coating | TiAlN | Unit | I |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.0532″ |
| Application | | Ext Threading Laydown | |
Product Features
| Family Description | External API - oil thread, round profile (API Spec 5B8-1996)laydown threading inserts | FamilyName | EL-API-RD |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name

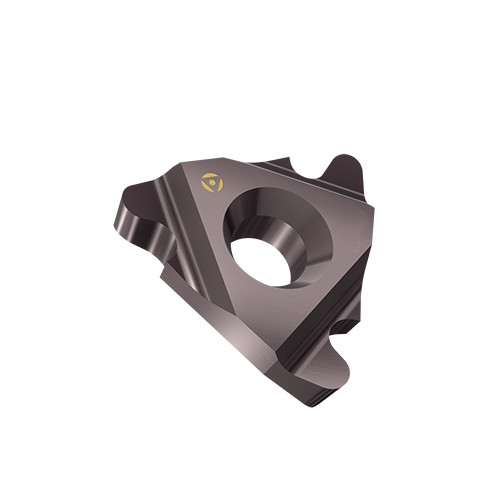

Laydown Threading Indexable Inserts
FamilyName
EL-API-RD
BrandName
Tool-Flo
